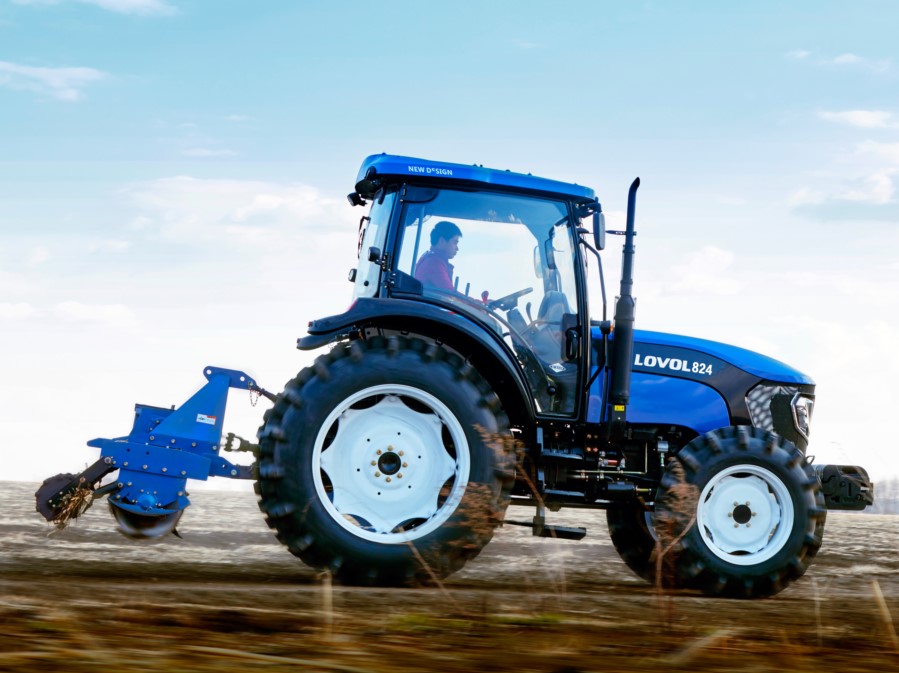

D824 Tractor

Lovol D824 tractor is equipped with 16+8 synchronizer for shifting and optional 16+8 shuttle/crawling gear. It is a farm tractor developed by Weichai Lovol Heavy Industry's technical team in Europe and is suitable for households and small and medium-sized farms.

  • Engine:Huafeng 4RMIZT20
  • Model(/):D824
  • Horsepower(HP):82
Get a quote
  • Product Highlights
  • Product Parameters
  • Engineering Cases
  • Related Products
Get a quote
Product Highlights
  • Selling Points
  • It is mainly used for dry land operations such as plowing, raking, rotary tillage, deep scarification, and sowing, and is also generally applicable to transportation, intertillage, engineer construction, municipal works, and other working conditions.

    1. Engine meeting Euro II emission standard, with torque reserve coefficient of ≥35% and traction force up to 21.3 KN; Synchronizer 16F+8R gears, easy shifting; Upgraded vehicle body outlook and comfort operation;
    2. LUK clutch and practical power instrument from U.S. strengthened front axle and chassis; Key parts and components purchased globally, for high product reliability; Multiple tire options; Optional internal and external air filters; Upper mounted exhaust; Optional single-line or double-line pneumatic brake; 145L main and auxiliary fuel tanks (or optional 90L single-side iron fuel tank);
    3. Standard 2-way hydraulic output, with optional 3-way output; Type II suspension; Optional double-cylinder forced pressure lifter, with the maximum lifting force up to 20 KN;

    4. OECD certificated.





Product Parameters
Item
Engine
Model
Horsepower
Displacement
Torque
Transmission
Gearshift
Technical route
Speed range
PTO speed
Hydraulic
Lifting power
Three-point suspension type
Hydraulic output flow
Number of multi-way valves
Parameter
length*width* height
Wheelbase
Ground clearance
Turning radius
Weight
Tire size
Unit
-
/
HP
L
N M
/
/
km/h
r/min
kN
/
L/min
/
mm
mm
mm
m
kg
/
Parameter
Huafeng 4RMIZT20
D824
82
4
360-390/1400~1600
16+8
Mechanical synchronizer
1.7-33.3
540/1000
21.3
Category 2
34/46/58
2
4342×2150×2900
2405
405
4.2±0.3
4020
12.4-24/18.4-30


Item
Engine
Model
Horsepower
Displacement
Torque
Transmission
Gearshift
Technical route
Speed range
PTO speed
Hydraulic
Lifting power
Three-point suspension type
Hydraulic output flow
Number of multi-way valves
Parameter
length*width* height
Wheelbase
Ground clearance
Turning radius
Weight
Tire size
Unit
-
/
HP
L
N M
/
/
km/h
r/min
kN
/
L/min
/
mm
mm
mm
m
kg
/
Parameter
Huafeng 4RMIZT20
D824
82
4
360-390/1400~1600
16+8
Mechanical synchronizer
1.7-33.3
540/1000
21.3
Category 2
34/46/58
2
4342×2150×2900
2405
405
4.2±0.3
4020
12.4-24/18.4-30
