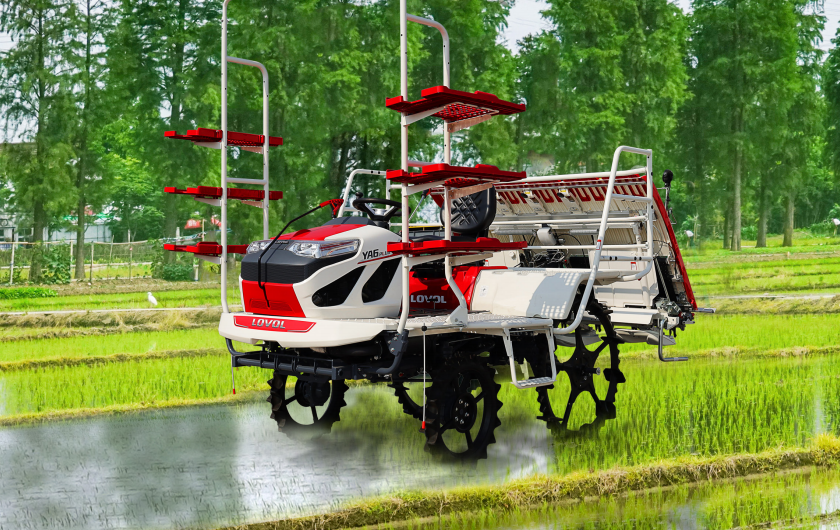

High-speed Rice Transplanter

The ARBOS 2ZGQ-6D ride high-speed transplanter adopts the optimal design of transplanting track and has been fully verified by the market, which can meet the operation requirements of different planting areas, with high efficiency and good transplanting effect. The machine can be equipped with deep side fertilization, flat ground, application, etc., to achieve a multi-purpose machine

  • Engine Brand:YANMAR
  • Rated Power(Kw):18.5
  • Rotating speed(r/min):3600
Get a quote
  • Product Highlights
  • Product Parameters
Get a quote
Product Highlights
  • Introduce
  • Powerful power, high reliability and high working efficiency

    Japanese YANMAR  original imported three-cylinder diesel engine (25.16 horsepower), similar models of the largest horsepower, low fuel consumption, good reliability; Standard American Danfoss large displacement hydraulic motor, output torque, deep mud foot area through good performance; Enhanced walking system; Large diameter walking wheel; The minimum ground clearance of chassis is 500mm, with high clearance and better performance of poor ground passage; Forced rotary insertion mechanism; High precision implantation system; All the boxes adopt Japan NOK compound oil seal, sealing quality is more reliable.

Product Parameters
ARBOS 2ZGQ-6D High-speed Rice Transplanter

ItemUnitSpecification
EngineEngine Brand/YANMAR
Rated PowerKw18.5
Rotating Speedr/min3600
Variable Speed Stage-----Main Speed: Forward Backward HST Stepless Variable Speed
Assistant Shift :2-gears, Collapse Prevention Variable Speed
Working Speedm/s1.65
No. of Working Rows-----6
Row Spacingmm300
Seeding Spacingmm100、120、140、160、180、210、240
Working Depthmm10-55
Transverse Displacementmm10.5/13.7/15.2/17.1
ARBOS 2ZGQ-6D High-speed Rice Transplanter

ItemUnitSpecification
EngineEngine Brand/YANMAR
Rated PowerKw18.5
Rotating Speedr/min3600
Variable Speed Stage-----Main Speed: Forward Backward HST Stepless Variable Speed
Assistant Shift :2-gears, Collapse Prevention Variable Speed
Working Speedm/s1.65
No. of Working Rows-----6
Row Spacingmm300
Seeding Spacingmm100、120、140、160、180、210、240
Working Depthmm10-55
Transverse Displacementmm10.5/13.7/15.2/17.1
