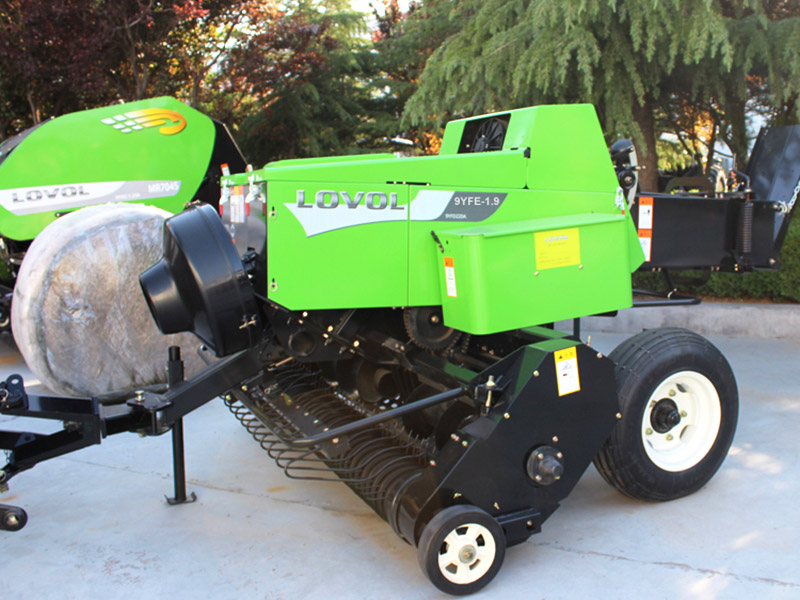

| Bundle Baler | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Square bundle baler | Round bundle baler | ||||||||||||
| Model | MF3032(9YF-1.6) | MF3040A(9YFD-1.9) | MF3045A(9YF-2.2) | Model | Unit | MR7040(9YRZ-1.25 | MR7045(9YRZ-1.25A) | ||||||
| Dimension | 4975×2180×1710 | 4880×2550×1710 | 4880×2820×1710 | Dimension | mm | 4410×2780×2440 | 4410×2780×2440. | ||||||
| Weight (kg) | 1462 | 1580 | 1640 | Weight (kg) | kg | 3300 | 3500 | ||||||
| Working width(mm) | 1600 | 1962 | 2236 | Working width(mm) | mm | 1900 | 2300 | ||||||
| Teeth beam number | 3 | 4 | 4 | Bales way | Net | ||||||||
| Teeth number | 33 | 56 | 64 | Roller number | 18 | ||||||||
| Diameter | 330 | Size of bale | mm | 1250×1230 | |||||||||
| Structural | Crank and rocker mechanism | Feeding structural | Rotor | ||||||||||
| Number of feeding forks | 4 | Cutting device | 7 | ||||||||||
| Overload protection | Safty cut bolt | Capacity | bundle/h | 30-50 | |||||||||
| Rated reciprocating frequency | 100 | Match tractor power(hp) | hp | ≥100 | |||||||||
| Bale cross section | 360×460 | Match voltage | V | 12 | |||||||||
| Length of bale | 300-1320 | PTO rotate speed | r/min | 540 | |||||||||
| Match tractor power(hp) | ≥40 | ≥50 | ≥50 | Protection | Safty bolt | ||||||||
| PTO rotate speed | 540 | ||||||||||||
| Tire size | 10-15 | ||||||||||||
