| Disc plough | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

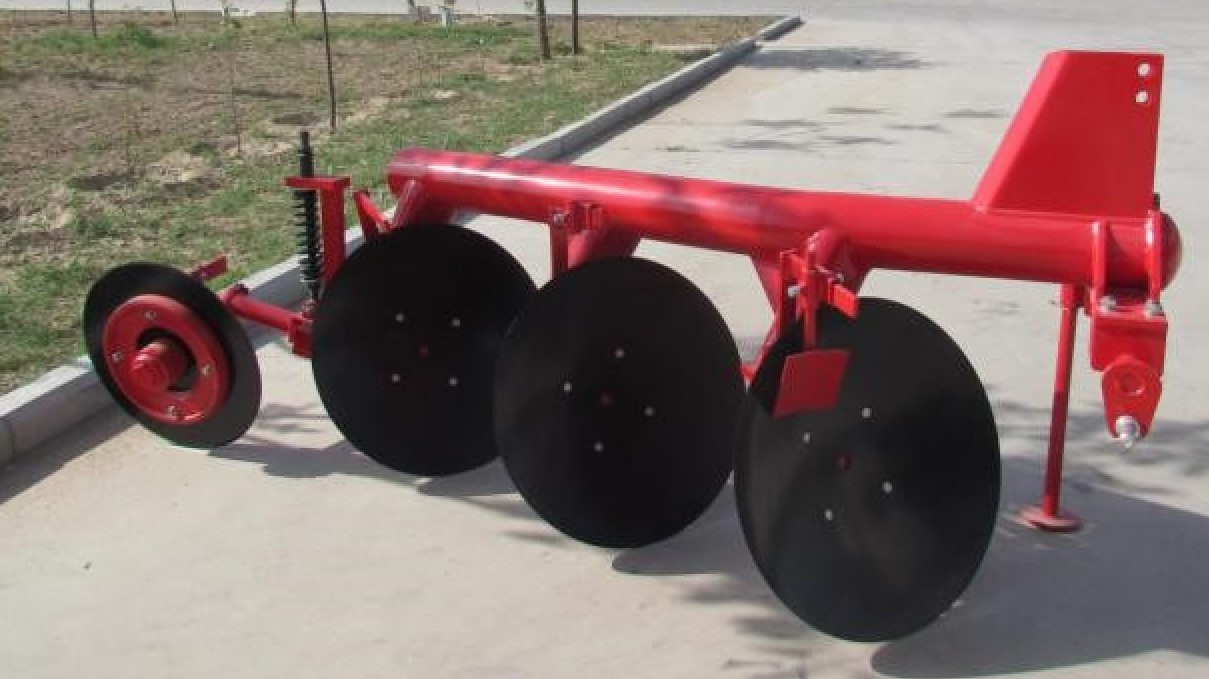

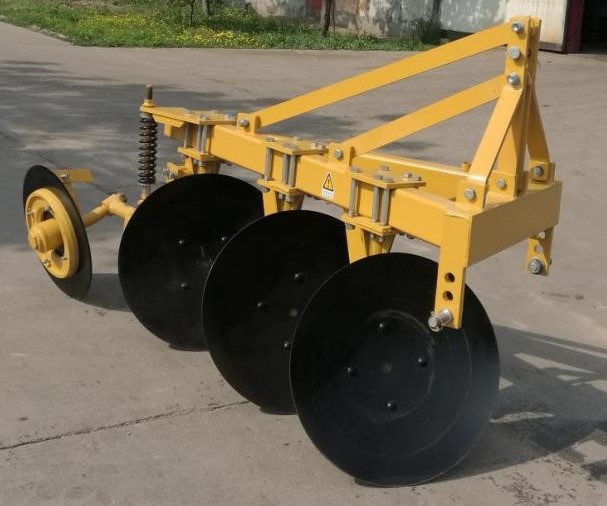

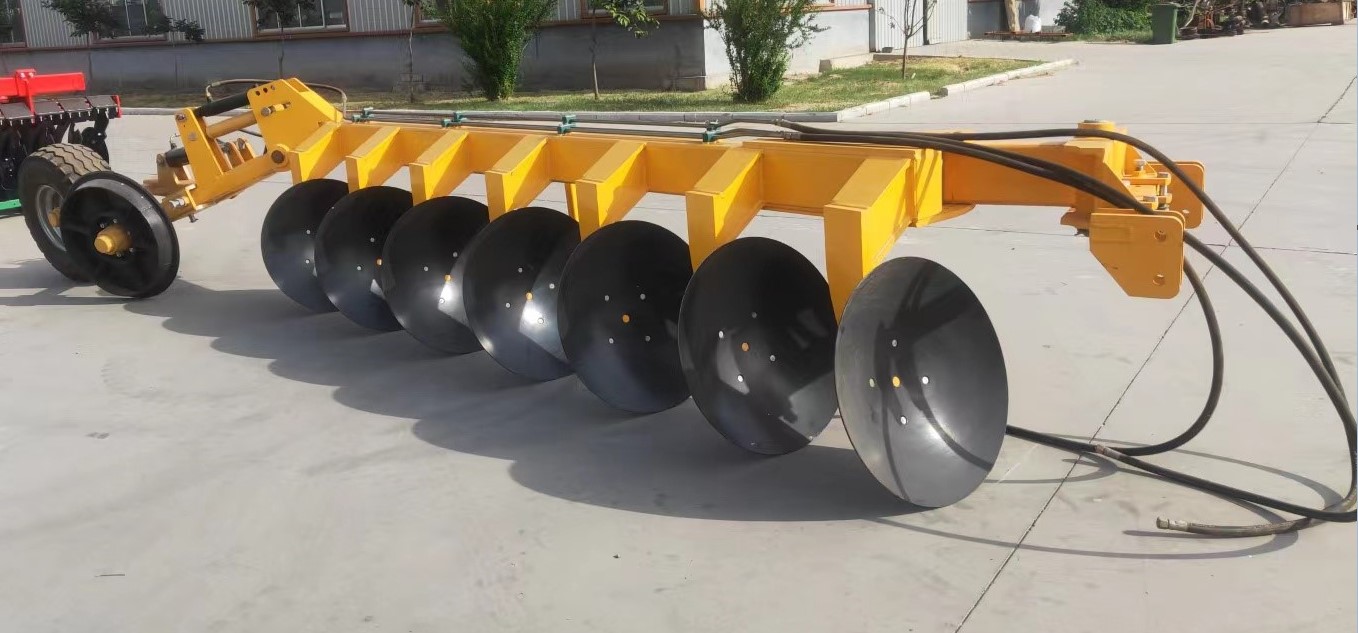

| Conventional disc plough | Round tube disc plough | ||||||||||||||||
| Model | 1LY-220 | 1LY-320 | 1LY-420 | 1LY-322 | 1LY-225 | 1LY-325 | 1LY-425 | 1LY-525 | 1LY-635 | 1LY-735 | 1LY-835 | 1LYX-230 | 1LYX-330 | 1LYX-430 | 1LYX-530 | 1LYX-630 | |
| Main parameters | Working width(mm) | 400 | 600 | 800 | 660 | 500 | 750 | 1000 | 1250 | 2100 | 2450 | 2800 | 600 | 900 | 1200 | 1500 | 1800 |
| Working depth(mm) | ≥200 | 200 | ≥200 | 220 | 250-300 | 250-300 | 250-300 | 250-300 | 250-300 | 250-300 | 250-300 | ≥250 | |||||
| Number of disc | 2 | 3 | 4 | 3 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 2 | 3 | 4 | 5 | 6 | |
| Diameter of disc(mm) | 510 | 510 | 510 | 560 | 660 | 660 | 660 | 660 | 710 | 710 | 710 | 660 | 660 | 660 | 660 | 660 | |
| Weight (kg) | ≥160 | ≥190 | ≥250 | ≥300 | ≥290 | ≥420 | ≥480 | ≥580 | 1600 | 1700 | 1800 | ≥300 | ≥400 | ≥500 | ≥600 | ≥700 | |
| Linkage | Three points hitch cat 1 | Three points hitch cat 1/cat2 | Three points hitch cat 2 | Semi-mounted | Three points hitch cat 2 | ||||||||||||
| Tractor(hp) | 18-20 | 30-50 | 35-50 | 45-55 | 50-60 | 75-90 | 90-100 | 100-120 | 125-160 | 160-200 | 180-220 | 40-50 | 60-80 | 80-100 | 100-120 | 120-140 | |
| Structure and material | Disc thickness（mm） | ≥4 | ≥4 | ≥4 | ≥4 | ≥6 | ≥6 | ≥6 | ≥6 | 8 | 8 | 8 | 6 | ||||
| Disc material | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | 65Mn | |
| Disc hardness (HRC) | ≥44 | ||||||||||||||||
| Plough frame material | Q235/Q345 steel | ||||||||||||||||
| Plough column material | 45 # steel | ||||||||||||||||
| Axle size(mm) | ≥45 | ≥45 | ≥45 | ≥55 | ≥75 | ≥75 | ≥75 | ≥75 | |||||||||
Features | •Matchable with tractor, it furrow soil when discs rotate, mainly applicable for complex land, such as weedy land, heavy soil, farmland with bricks and stones, etc. It would not be plugged with grass and can cut off stem of crop and overcome bricks and stones, with high efficiency, good quality work, easy to adjust, simple to use,durable, etc | •The plough is matched with big tractor power, mainly applicable for complex land, such as weedy land, heavy soil, farmland with bricks and stones, etc. •It has the characteristics of not entangling grass, not blocking, not blocking earth, cutting off stem of crops and overcoming the brick and stone fragments of soil, high working efficiency, good working quality, easy adjustment, simple and durable and so on. | •It is designed to work in all types of soil for functions such as soil breaking, soil raising, soil turning and soil mixing. •It is used to open the new fields and to process the stony areas. •Its special design allows to easier work in rocky and rooted areas. • It is specially useful in hard and dry land 。 | ||||||||||||||
| Standard componentand appearance | Bearing type | TRB | |||||||||||||||
| Standard component | Galvanized | ||||||||||||||||
| Appearance treatment | Stoving varnish | ||||||||||||||||
| Color | Optional | ||||||||||||||||
