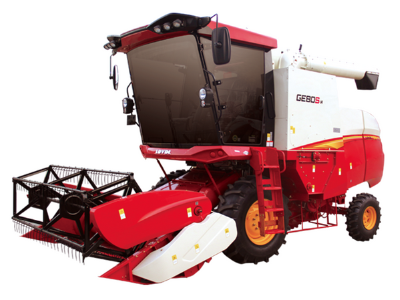

GM80 Wheel Combine Harvester

LOVOL GM80 is a multi-purpose harvester designed for small and medium-sized farms and agricultural machinery service providers. Adopt international advanced longitudinal flow threshing and separation technology,by changing different attachments,making it suitable for rice, wheat, corn, sorghum, beans. It applies to the whole region, the entire period, the whole crop efficient harvest.

  • Engine Power(ps):175
  • Cutting Width(mm):3250
  • Total Weight(kg):7350
Get a quote
  • Product Highlights
  • Product Parameters
  • Engineering Cases
  • Related Products
Get a quote
Product Highlights
  • Efficient
  • Reliable
  • All-round
  • Comfortable
  • 1. Using 175HP High pressure common rail engine,and 190 HP stageⅢengine is also available.

    2. Strong unloading auguer,takes 90 seconds to unload.

    3. Usingφ600mm×3145mm longitudinal axial flow threshing separation drum,has a sizeable threshing separation area.And 289-1150r/min infinitely variable speeds are efficient.

    4. 5.85m turning radius realizes fast turning round speed.

    5. Unloading height is close to 3.7meters,which can meet different unloading trucks'height requirements.

  • 1. Bosch controller oil feeding system is fuel-efficient and reliable.

    2. Using an imported Japanese BANDO belt and Peel bearing,it has a high transmission efficiency and excellent heat dissipation,making it more reliable.

    3. Using the imported Danfoss walking pump and the hydrostatic drive.

    4. All electrical wiring harness connectors are waterproof.

    5. Using JieWei air filter with higher filtration precision and saving cleaning time.

    6. The critical parts of the auger blade uses wear-resistant coating,more reliable.

  • 1. Optional headers and attachment for wheat,soybean,corn,suitable for different crops.

    2. 2.Both side covers can be opened to change the concave plate,ideal for different crops.

    3. Standard cutter and disperser,convenient for straw shredding and returning to the field.

  • 1. The front and lower visual field reaches 65°,you can see the crops enter the bridge,and the horizontal visual field is more than 180°.

    2. Positive pressure cab,the cab's internal pressure is higher than that of the outside,which improves the ventilation cleanliness.

    3. Standard three fan air conditioning,excellent refrigeration effect.

    4. Leather seat,adjustable up and down.

    5. Eight inch LCD instrument,can be inserted U disk,working,and music simultaneously.

    6. The seat can be adjusted to six directions.The steering mechanism's angle can be adjusted to perfectly match the driving posture,reduce fatigue,and make the operation comfortable.

Product Parameters
Item
Engine Power
Cutting Width
Total Weight
Feed Capacity
Overall Dimensions
Tank Volume
Working Efficiency
Threshing Structure Form
Cleaning Structure Form
Unloading Grain Height
Unit
ps
mm
kg
kg
mm
L
h㎡/h
/
/
Mm
Parameter
175
3250
7350
8
7000×3625×3470
2600
0.6-1.8
longitudinal axial flow
air-and-screen cleaning device
3100/3700
Item
Unit
Parameter
Engine Power
ps
175
Cutting Width
mm
3250
Total Weight
kg
7350
Feed Capacity
kg
8
Overall Dimensions
mm
7000×3625×3470
Tank Volume
L
2600
Working Efficiency
h㎡/h
0.6-1.8
Threshing Structure Form
/
longitudinal axial flow
Cleaning Structure Form
/
air-and-screen cleaning device
Unloading Grain Height
Mm
3100/3700
